200 series Gas cooktop 200 series Stainless steel Width 90 cm
- 1 multi-ring wok burner (300 W – 5000 W).
- 1 high output burner (500 W - 3000 W), suitable for pots up to max. ø 26 cm.
- 2 standard burners (350 W – 1750 W), suitable for pots up to max. ø 20 cm.
- 1 economy burner (330 W – 1000 W), suitable for pots up to max. ø 14 cm.
- Control knobs with cooking zone and output level markings for 9 levels.
- One-handed operation.
- Electric ignition.
- Three-part cast iron pan support with continuous pot surface.
- Enamelled burner cover.
- Thermoelectric safety pilot.
- The cooktop can be surface-mounted.
- Special nozzles can be ordered as spare parts.

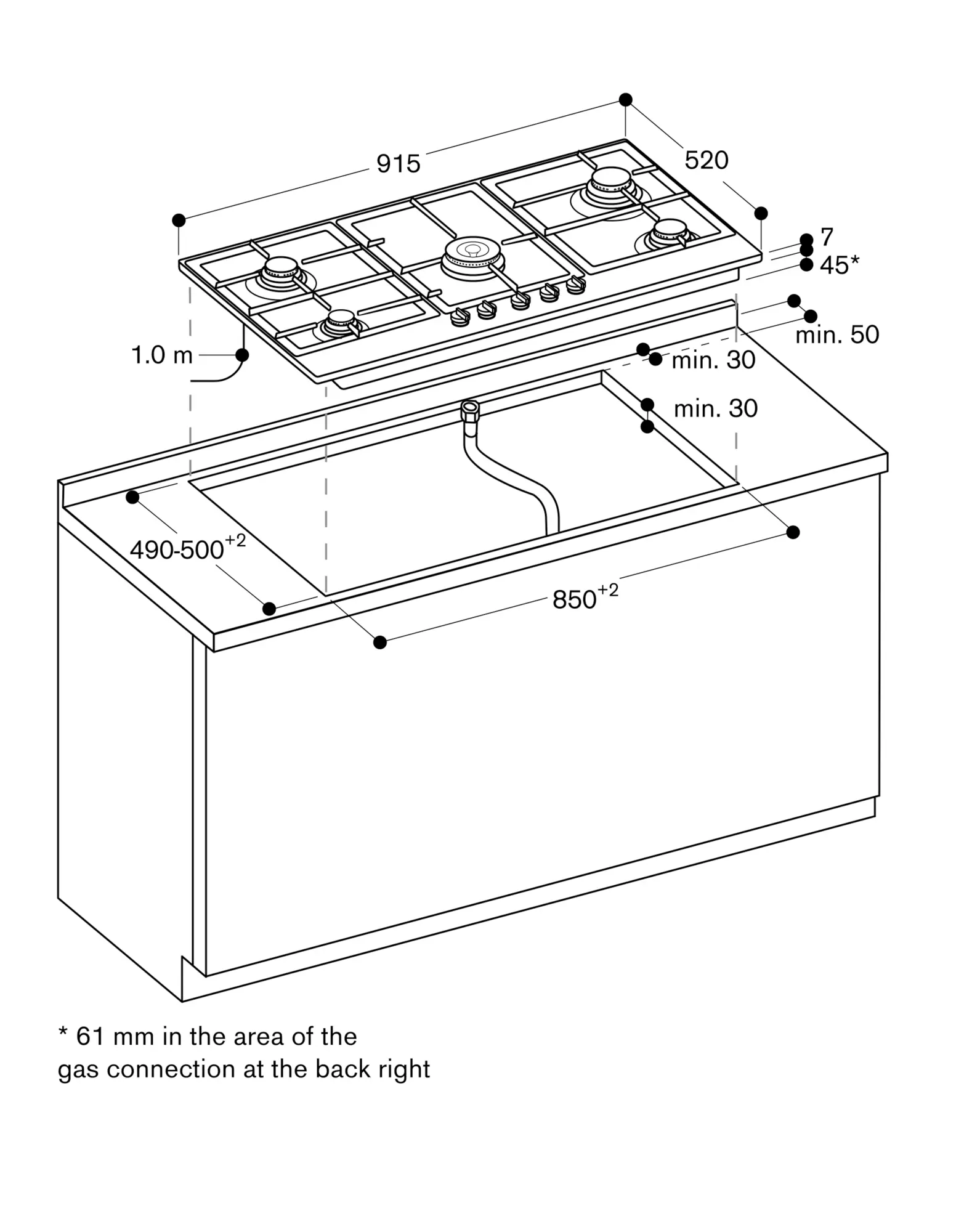

- Installation in a 85 cm niche or a 88 cm niche with the included spacers.
- Air intake from above.
- Intermediate shelf is required.
- Appliance must be fixed from underneath.
- A minimum clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
- Cooktop clamping range: 30 - 50 mm.
- With a total connected load of more than 11 kW local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed. Minimum clearance between gas cooktop(s) with more than 11 kW and ventilation hood 70 cm.
- Appliance weight: approx. 17 kg.
- Total connected load gas 12.5 kW.
- Connecting cable 1.0 m without plug.
|Type of control setting and signalling devices||sword knobs|
|Highlights||Flame select, Wok burner|
|Energy efficiency of hob||60.0 %|
|Color of frame||Stainless steel|
|Color of surface||Stainless steel|
|Number of electric plates||0|
|Number of electric cooking zones||0|
|Number of gas burners||5|
|Number of halogen plates||0|
|Installation typology||Built-in into the cabinet|
|Type of pan support||Elongated cast iron pan support|
|Total number of positions that can be used at the same time||5|
|Number of radiant plates||0|
|Number of electric warming zones||0|
Size and weight
|Dimensions of the product (mm)||45 x 915 x 520 mm|
|Net weight (kg)||16.803 kg|
Cooking zone 1
|Location of 1st heating element||front left|
|Type of heating element||Gas|
Cooking zone 2
|Location of 2nd heating element||center left|
Cooking zone 3
|Location of 3rd heating element||back left|
|Type of 3rd heating element||Gas|
Cooking zone 4
|Location of 4th heating element||middle back|
Cooking zone 5
|Location of 5th heating element||back right|
|Type of 5th heating element||Gas|
Cooking zone 6
|Location of 6th heating element||center right|
Cooking zone 7
|Location of 7th heating element||front right|
|Type of 7th heating element||Gas|
Cooking zone 8
|Location of 8th heating element||front middle / central|
Cooking zone 9
|Location of 9th heating element||front centre/cent|
|Type of 9th heating element||Gas|
|Type of safety device for gas||Electromagnetic for each burner|
|Power on indicator|
|Residual heat indicator||without|
|Main on/off switch|
|Length electrical supply cord (cm)||100 cm|
|Electrical connection rating (W)||1 W|
|Frequency (Hz)||60; 50 Hz|
|Gas connection||rear, right|
|Gas connection rating (W)||12,500 W|
|Included accessories||1 x cross support for espresso, 1 x WOK attachment ring|
