Powerful remote fan unit to combine with motorless appliances 400 series

Efficient BLDC technology

Power levels depend on the motorless appliances, see table on page XX.

3 electronically controlled power levels and one intensive mode.

Fan technology with highly efficient, brushless DC motor (BLDC).

Steel housing, zinc-plated.

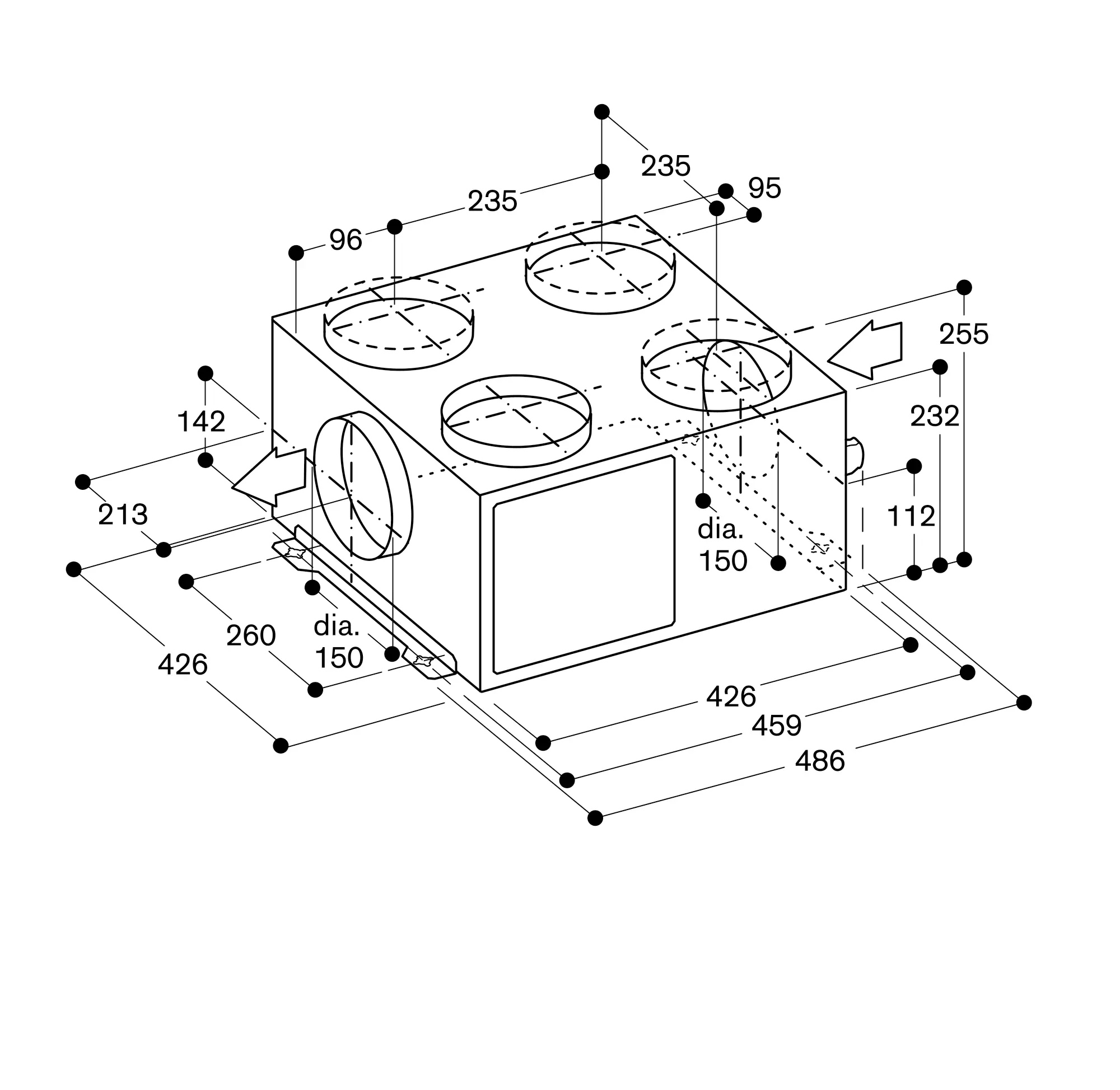

Pipe connection pieces on intake side: 1 x NW 150 round, 4 x NW 150 round.

Pipe connection pieces on output side: 1x NW 150 round.

Spare cover for closing air intake.

Retaining bracket for installation on the ceiling or side of a cupboard enclosed.

Remote fan unit in combination with motorless appliances.

Connection to the respective appliances via network cable.

Installation in the plinth with cut-out for the air ducting in the furniture base.

Installation in a separate room allows for a reduced noise level in the kitchen.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

Total connected load 240 W.
