Technical Overview
Main colour of product
Not applicable
Number of programmes
6
Drying system
Zeolith, Heat exchanger
Additional operational options
intensiveZone, Turbo
Gaggenau Home Connect
No
Specifications
Optimal protection for sensitive glassware by low temperature drying with zeolite and intelligent water softening
6 programmes with aqua sensor and 2 options, Power and Intensive:
Clean and dry dishes in 65 minutes
Intensive cleaning in the lower basket while protecting glassware in the upper basket
Flexible basket system including cutlery drawer for optimal loading
Remaining time projection onto the kitchen floor
Bright interior lighting
Very quiet: 44 dB
Energy efficiency class A+++
Display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Remaining time projection.
Bright interior lighting.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Automatic detergent function.
Regeneration electronics
Heat exchanger.
speedMatic hydraulic system
Triple filter system.
Soft lock.
6 programmes:
Auto 35 °C - 45 °C.
Auto 45 °C - 65 °C.
Auto 65 °C - 75 °C.
Standard Eco 50 °C.
Quick wash 45 °C (29 min.).
Pre-rinse.
2 options:
Intensive.
Power.
Flexible basket system.
Cutlery drawer.
Upper basket:
Rackmatic with 3 levels, adjustable in height up to 5 cm.
3 folding spines.
1 folding rack.
Lower basket:
4 folding spines.
1 folding rack.
Glass support.
Cutlery basket.
Maximum dish sizes (upper/lower basket)
19/25, 16.5/27.5 or 14/31 cm respectively.
10 place setting capacity.
Energy efficiency class A+++ at a range of energy efficiency classes from A+++ to D.
From 9.5 l water.
From 0.66 kWh.
Noise level 44 dB (re 1 pW).
Height-adjustable feet.

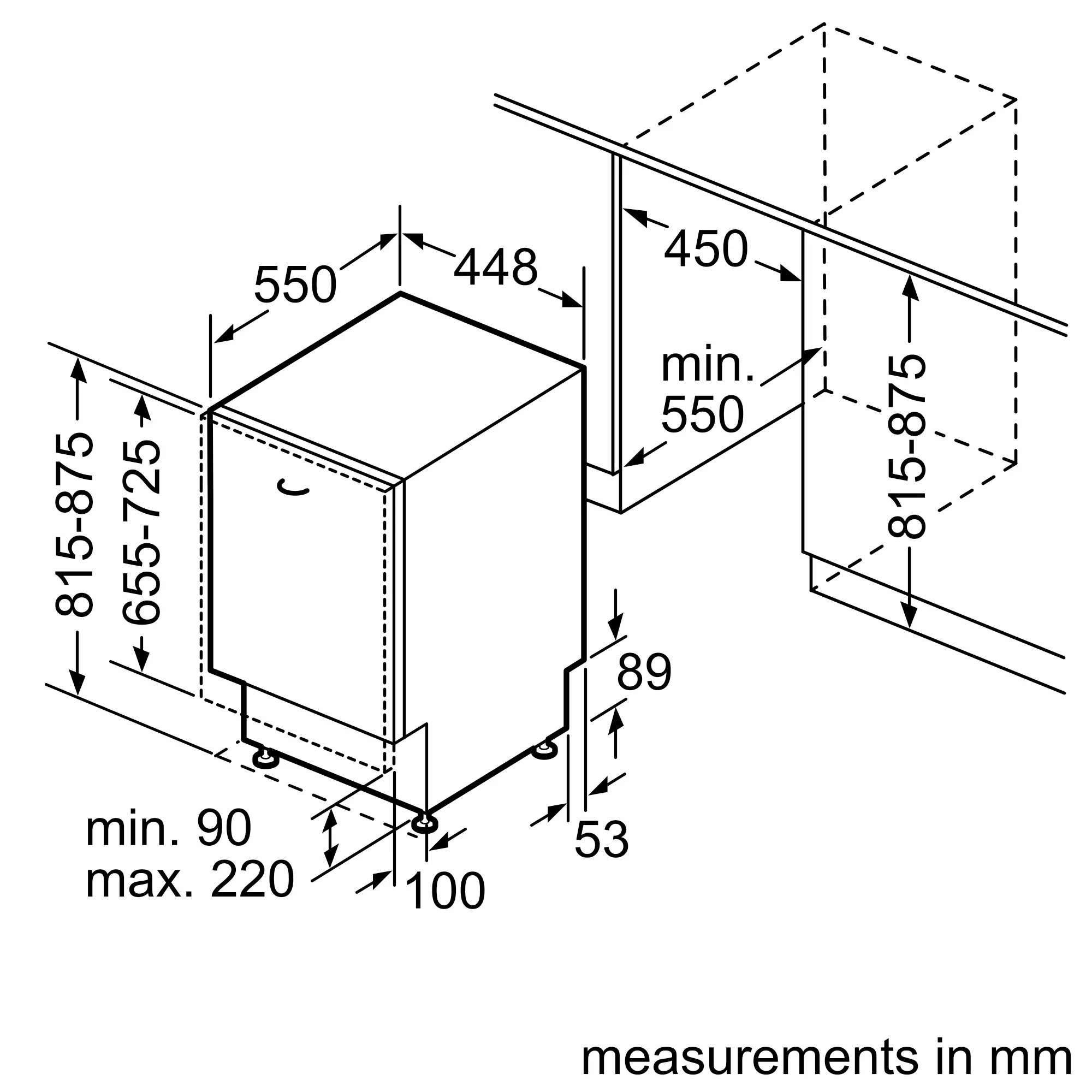

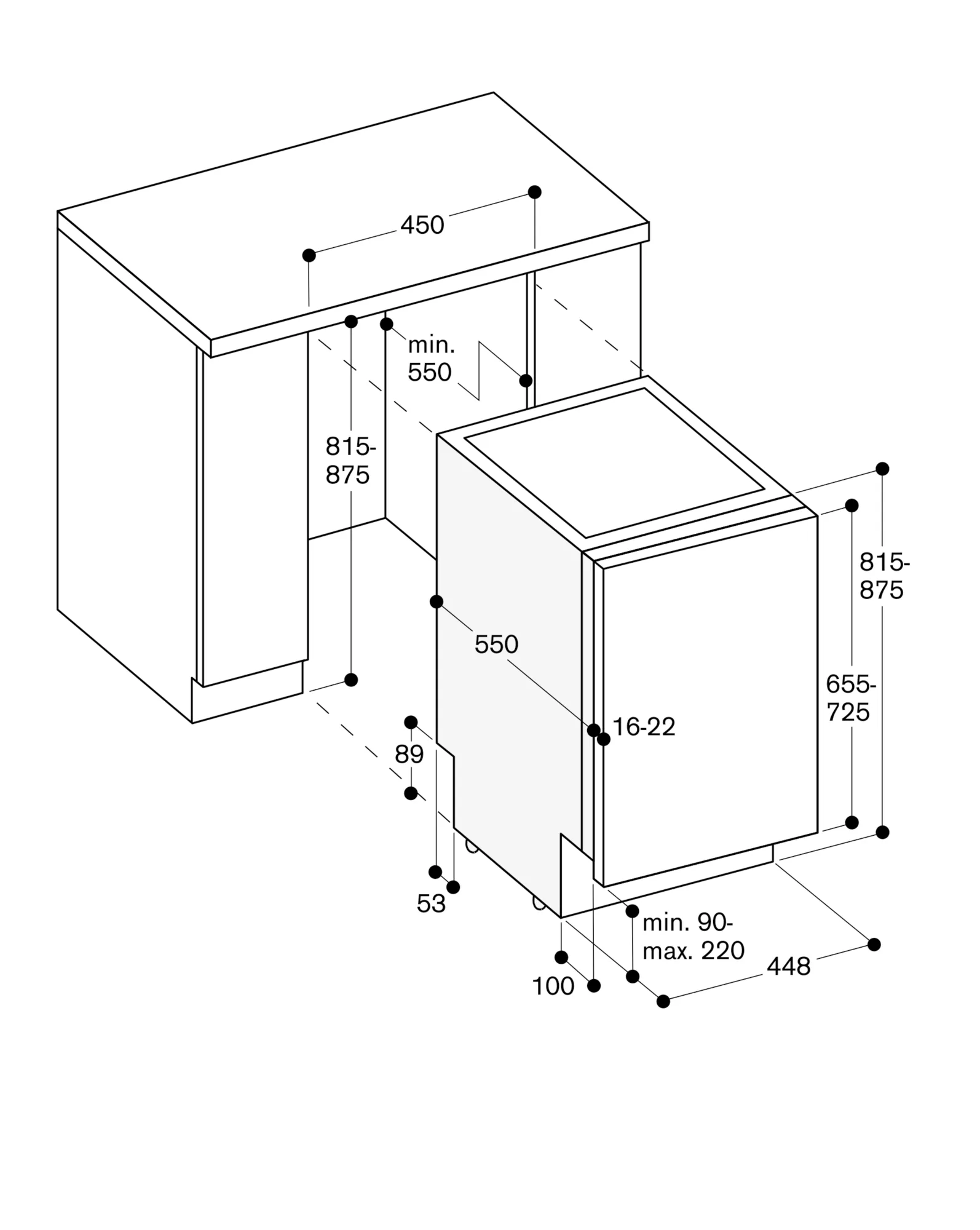

Appliance plinth recess 100 mm (see drawing).
To display the remaining time projection, a minimum plinth protrusion is required (40 mm + thickness of the furniture front).
The maximum plinth height must be reduced by 30 mm to provide an optimal display of the remaining time projection.
Rear feet adjustable at front.
Door weight up to 7.5 kg.
Door panel dimension dependent on plinth height of kitchen furniture.
Total connected load <201300convert(kW)>.
Connecting cable pluggable.

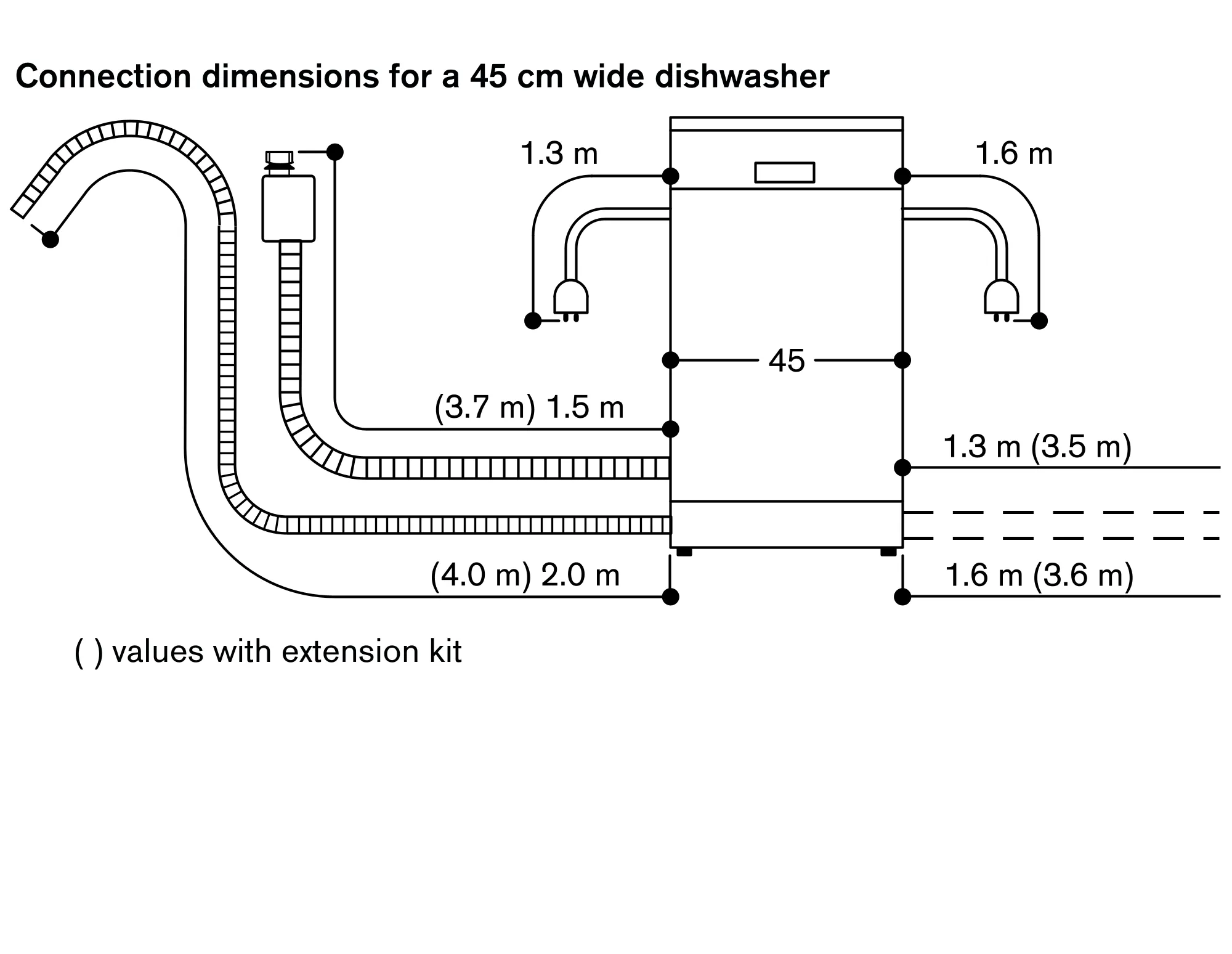

Water connection with 3/4" screw joint.
Connection to hot or cold water possible.
