Technical Overview
Main colour of product
Not applicable
Number of programmes
8
Drying system
Zeolith, Heat exchanger
Additional operational options
energySave, ExtraDry, HalfLoad, intensiveZone, hygiene, Turbo
Gaggenau Home Connect
No
Highlights
Special Features
8 programmes with aqua sensor and 4 options, such as Power for cleaning and drying dishes from 57 minutes and Intensive Plus for adjusting cleaning areas in the lower basket
Specifications
Optimal protection for sensitive glassware by low temperature drying with zeolite and intelligent water softening
8 programmes with aqua sensor and 6 options, such as Power and Intensive:
Clean and dry dishes in 57 minutes Intensive cleaning in the lower basket while protecting glassware in the upper basket
Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower basket
TFT display for intuitive handling of all functions
Perfectly illuminated interior
Push-to-open function for perfect integration into handleless furniture fronts
Very quiet: 43 dB
Energy efficiency class A+++
Aqua stop with guarantee
TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.
Touch key operation.
Information key with use indications.
Time delay up to 24 hours.
Visual and acoustic end of programme indicator.
Info-Light.
Perfectly illuminated interior.
Glass protection with zeolite.
Aqua sensor.
Load sensor.
Automatic detergent function.
Regeneration electronics
Heat exchanger.
speedMatic hydraulic system
Triple filter system.
Soft lock.
Aqua stop with guarantee.
8 programmes:
Auto 35 °C - 45 °C. Auto 45 °C - 65 °C. Auto 65 °C - 75 °C. Intensive 70 °C. Standard Eco 50 °C. Night programme. Quick wash 45 °C (29 min.). Pre-rinse.
6 options:
Intensive. Power. Half Load. Hygiene. Extra Dry. Energy Save.
Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower basket.
Upper basket:
Over extension. Rackmatic with 3 levels, adjustable in height up to 5 cm. 6 folding spines. 4 folding racks. 2 glass support bars.
Lower basket:
8 folding spines. 2 folding racks. Dividable glass support.
Cutlery basket.
Holder for long-stemmed glasses.
Maximum dish sizes (upper/lower basket)
27/25, 24.5/27.5 or 22/31 cm respectively.
12 place setting capacity.
Maximum glass loading capacity 23 wine glasses.
Energy efficiency class A+++ at a range of energy efficiency classes from A+++ to D.
From 9.5 l water.
From 0.8 kWh.
Noise level 43 dB (re 1 pW).
Height-adjustable feet.

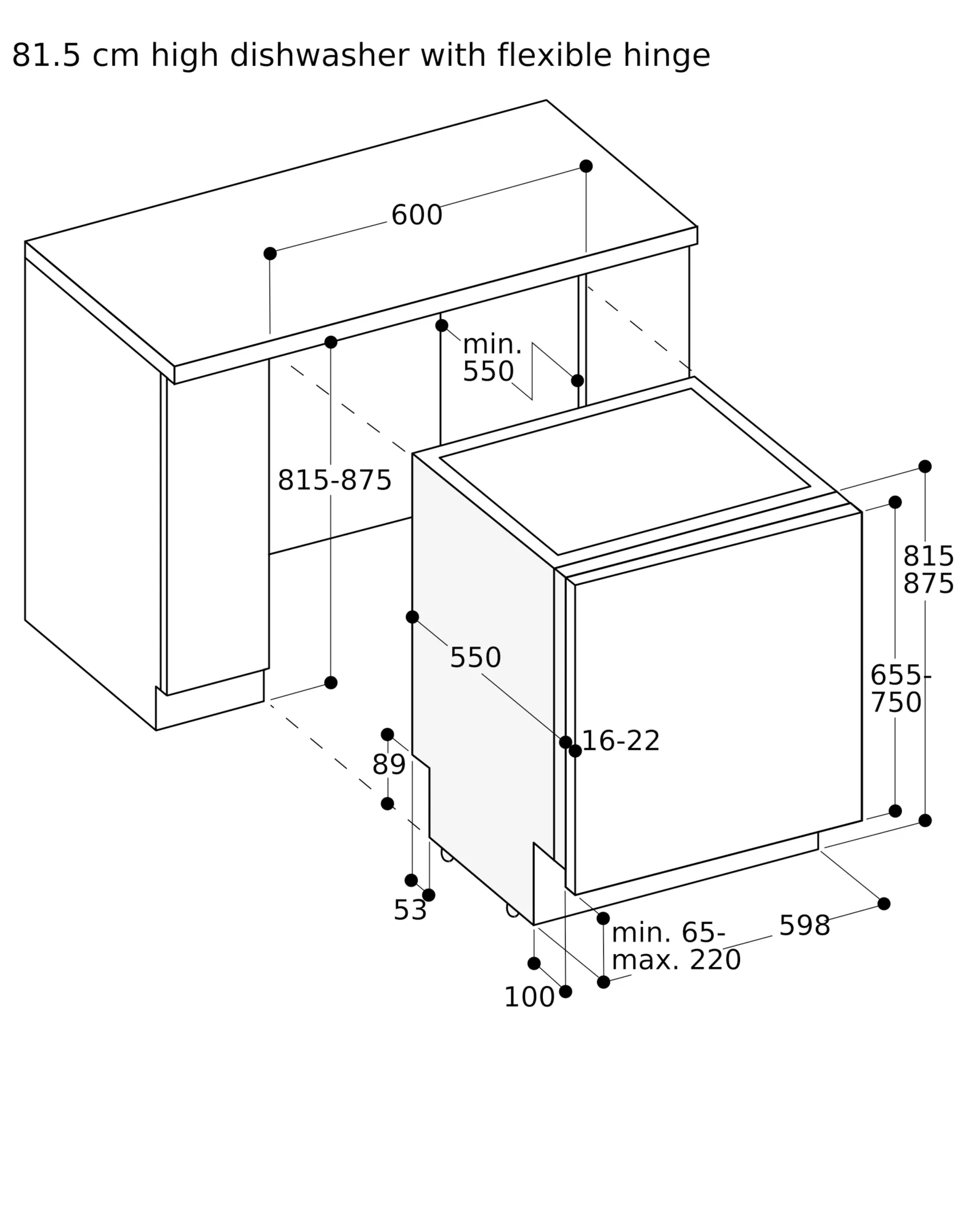

Appliance plinth recess 100 mm (see drawing).
Rear feet adjustable at front.
Door weight up to 8.5 kg.
Door panel dimension dependent on plinth height of kitchen furniture.
Installation and usage also with furniture handle possible. The push-to-open function remains active.
For installation into a tall unit, ventilation openings are recommended (min. 200 cm²).
Total connected load <201300convert(kW)>.
Connecting cable pluggable.
Water connection with 3/4" screw joint.
Connection to hot or cold water possible.
