Product group: Combinations

Brand: Gaggenau

Product name / Commercial code: RB472305

Internal article number: RB472305

EAN code: 4242006290900

Product category: Bottom freezer

Product type: two door

Built-in / Free-standing: Built-in

Installation typology: Full-integrated

Is this appliance intended to be built-in

Door panel options: Not possible

Total connected load: 300 W

Fuse protection: 10 A

Nominal voltage: 220-240 V

Frequency: 50-60 Hz

Number of compressors: 2

Connection: With plug

Total unit gross capacity: 517 l

Total unit gross capacity Iran: 18.3 Cu Ft

Total unit net capacity: 418 l

Total unit net capacity Iran: 14.8 Cu Ft

Refrigerator Gross capacity: 360 l

Refrigerator Gross capacity Iran: 12.7 Cu Ft

Freezer Gross capacity: 157 l

Freezer Gross capacity Iran: 5.5 Cu Ft

Star Rating: 4

Cellar Gross capacity: 0 l

Number of independent cooling systems: 2

Width of the appliance: 756 mm

Depth of the product: 608 mm

Depth with open door 90 degree: 1440 mm

Height of the packed product: 2260 mm

Width of the packed product: 860 mm

Depth of the packed product: 750 mm

Maximum adjustability feet: 79 mm

Minimum height for installation: 2134 mm

Maximum height for installation: 2134 mm

Minimum width for installation: 762 mm

Maximum width for installation: 762 mm

Depth for installation: 610 mm

Gross weight: 204.3 kg

Energy consumption annual - NEW (2010/30/EC): 301.00 kWh/annum

Refrigerator Net capacity - NEW (2010/30/EC): 308 l

Freezer Net capacity - NEW (2010/30/EC): 110 l

Freezing capacity) - NEW (2010/30/EC): 14 kg/24h

Storage Period in Event of Power Failure (h): 13 h

Temperature rise time (h): 13 h

Climate class: SN-T

Minimum ambient temperature: 10 °C

Maximum ambient temperature: 43 °C

Noise level: 42 dB(A) re 1pW

Frost free system: Fridge

QR Code (EU 2017/1369): HTTPS://EPREL.EC.EUROPA.EU/QR/260941

Energy Efficiency Class (Regulation (EU) 2017/1369): E

Airborne acoustical noise emissions (EU 2017/1369): 42 dB(A) re 1pW

Airborne acoustical noise emission class (EU 2017/1369): D

Average annual energy consumption in kilowatt hour per year (kWh/a) (EU) 2017/1369: 295 kWh/annum

Sum of volume of frozen compartments (EU 2017/1369): 136 l

Sum of volume of chill- and unfrozen compartments (EU 2017/1369): 316 l

Product outside the scope of "low noise appliance" and "wine storage appliance" (EU 2017/1369)

Climate Class (EU) 2017/1369: Extended temperate, Subtropical, Temperate, tropical

Minimum ambient temperature (EU) 2017/1369: 10 °C

Maximum ambient temperature (EU) 2017/1369: 43 °C

Compartment Volume (Fresh Food) (EU2017/1369): 316.0 l

Compartment Volume (4-Star) (EU2017/1369): 136.0 l

Recommended Temperature (Fresh Food) (EU2017/1369): 4 °C

Recommended Temperature (4-Star) (EU2017/1369): -18 °C

Freezing Capacity (4-star Compartment) (EU2017/1369): 14.0 kg/24h

Defrosting Type (Fresh Food) (EU2017/1369): Automatic

Defrosting Type (4-Star) (EU2017/1369): Automatic

Fast freezing function (EU 2017/1369)

Total volume of the product (EU 2017/1369): 452 l

Energy Efficiency Index (EU 2017/1369): 100

Fresh food

4-star

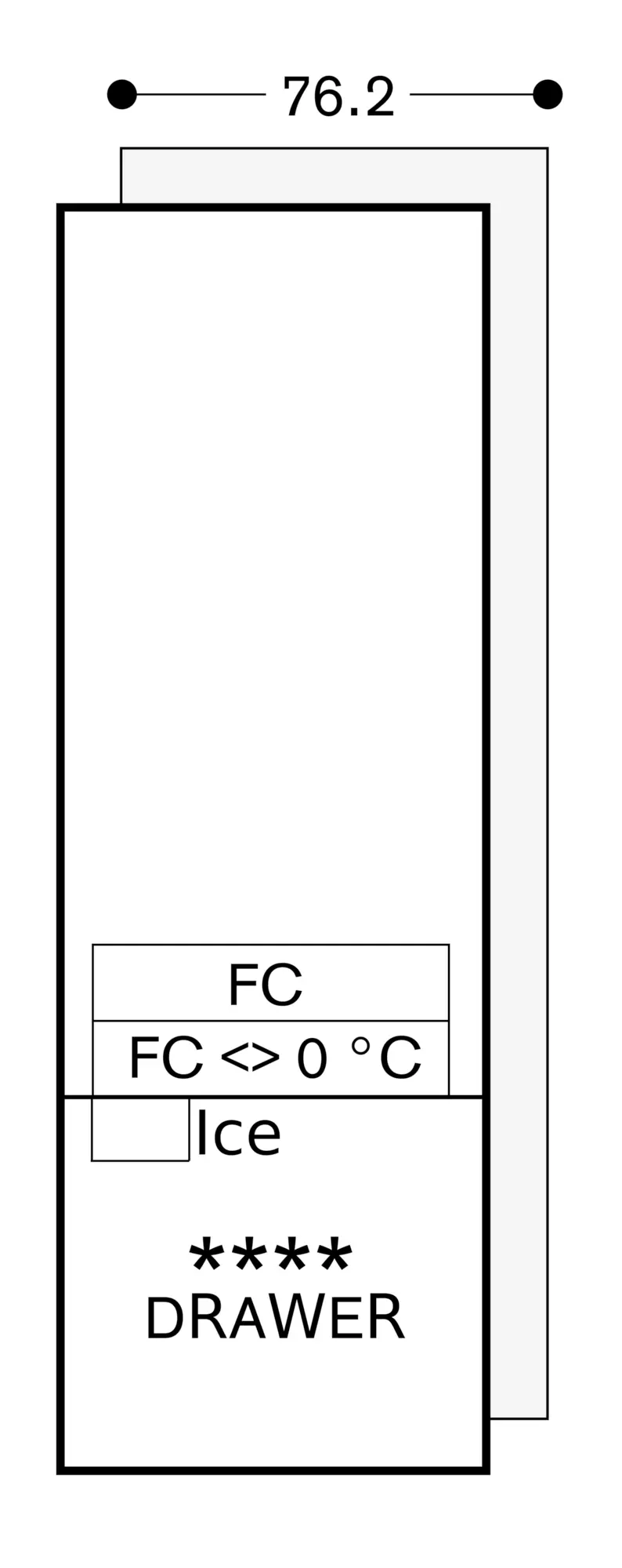

List compartments: 4 star, Fresh food

Energy Efficiency Class for Light Regulation (light source 1) (EU) 2019/1805): F

Lighting technology used (light source 1) (EU 2019/1805): LED

Energy Efficiency Class for Light Regulation (light source 2) (EU) 2019/1805): G

Lighting technology used (light source 2) (EU 2019/1805): LED

Defrost process fridge section: Automatic

Defrost process freezer section: Automatic

Fast cooling switch

Fast freezing switch

Temperature adjustable

Temperature adjustable freezer

Thaw water drainage system

Interior ventilator

Door hinge: Right reversible

Adjustable feet: Yes - all

Cover door installation system: Fixed-mounted

Freezing drawers (Stck): 0

Number of freezing flaps (Stck): 0

Automatic motor-driven ice-maker

Number of shelves in fridge compartment: 3

Number of Adjustable Shelves in fridge compartment: 2

Material ofthe shelves: Safety glass

Thermometer fridge section: Digital

Humidifying equipment: false

Included accessories: 1 x egg box with lid, 1 x ice cube scoop

Optional accessories: RA430100, RA450012

Dimensions of the packed product (HxWxD): 2260x860x750 mm

Height: 2125 mm

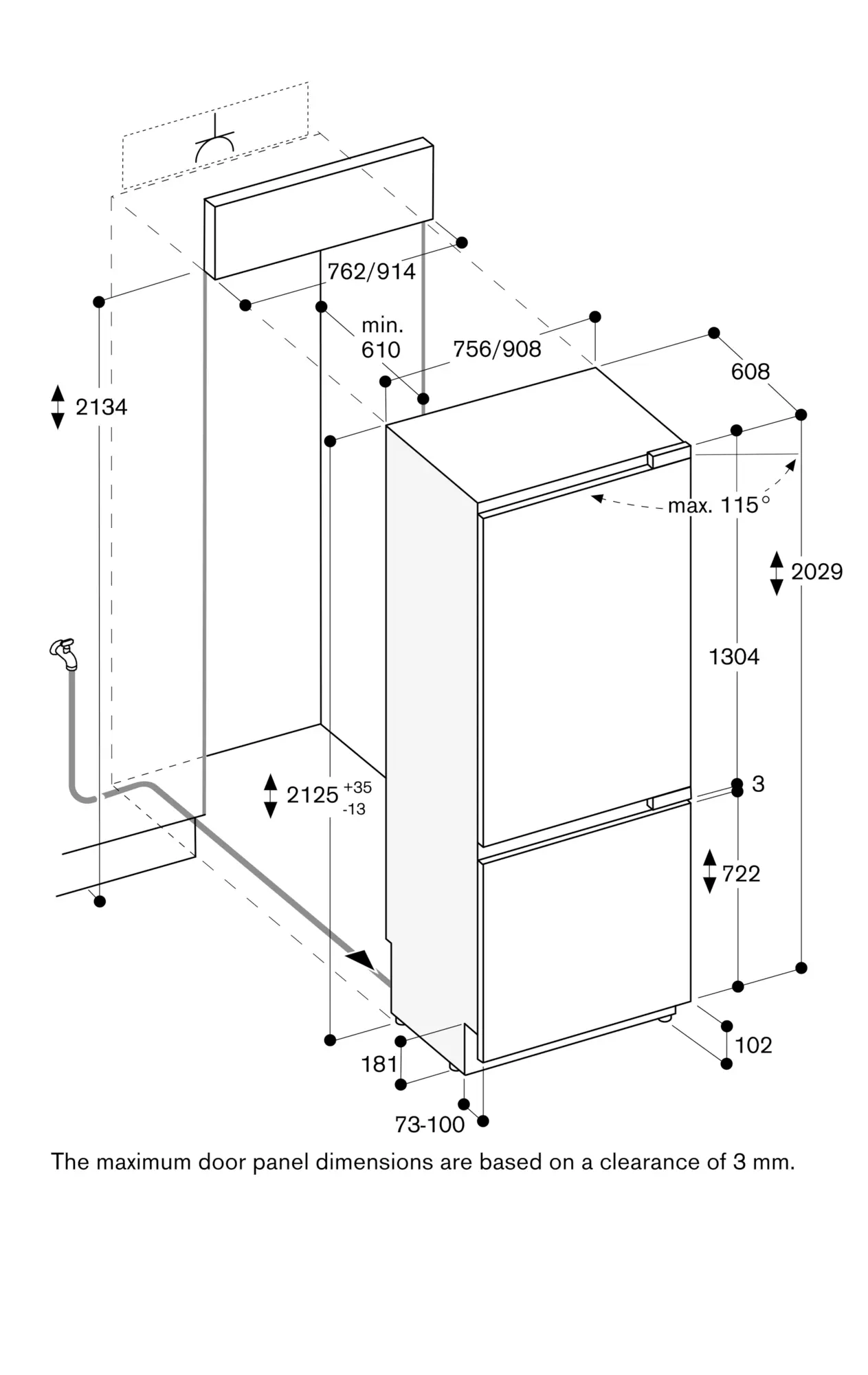

Required niche size for installation (HxWxD): 2134.0 x 762.0 x 610.0 mm

Reversible Door Hinge

Width with opened door (90°): 77.00 cm

No. of door shelves: 3

Cold appliance: Isobutane

Appliance Dimensions (h x w x d) (in): 83 3/4 x 29 3/4 x 24

Height (in): 83_3_4_

Ice Storage Capacity: 3.0 kg

Ice Cubes per Day: 2 kg

Width: 76 cm

Height: 212 cm

Depth: 61 cm

Appliance Width (in): 29_3_4_

Depth (in): 24_

Dimensions of the packed product: 226 x 86 x 75 cm

Dimensions of the packed product: 88.97 x 33.85 x 29.52

Width of the packed product: 33.86 "

Depth of the packed product: 29.53 "

Height of the packed product: 88.98 "

Required cutout/niche size for installation (in): 84 x 30 x

Net weight: 414.000 lbs

Gross weight: 450.000 lbs

Interior light

Illumination type: LED light

Light

Number of Door Bins - Refrigerator: 3

Door bin adjustability - Refrigerator

Gallon Storage

Number of Gallon storage: 1

Light Wattage - Refrigerator: LED

Humidity Control Drawer

Multi-Flow Air Tower

Shelf Adjustability - Freezer

Length of electrical supply cord (in): 118

Placement of Temperature Control: Interior

Door handle type: no handle

Energy efficiency rating China: X

No. of temperature zones fridge: 3

Fitbit

Magenta Smart Home

IFTTT

Communication technology: wifi

Remote access

Remote update

Capability of wireless communication: Yes, embedded

400 series

Energy label version: 2017

Hinge type: soft close flat hinge

Width type US: 30 Inch

Connectivity type: Wi-Fi

Selected digital services (Gaggenau Home Connect): Remote diagnostics, Remote Monitoring and Control

Appliance weight: 187.7 kg

noFrost

Gaggenau Home Connect

Basic touch control

Height of the product: 212 cm

Door Open Assist

Height of the appliance: 2125 mm

Height of the product: 212.5 cm

Dimensions (HxWxD): 2125x756x608 mm

Depth of the product: 60.8 cm

Total capacity of 1-star, 2-star, 3-star and 4-star freezer compartments: 0 l

Chemical Tax Classification: 0 %

Width of the appliance: 75.6 cm

Length of connection cable: 300 cm

Keeps food fresh longer

Ice and water dispenser

Supplier address TR19: BSH Ev Aletleri Sanayi ve Ticaret A.Ş. FSM Mah. Balkan Cad. 51, 34771 Ümraniye İstanbul, Türkiye

Fixed hinge

LED light with freezer light

superFreezing

Vitafresh_pro_CN

Cushioned door closing system

Dual Compressor

Type of control setting and signalling devices: Button, Via app

Cheese compartment

Filter system

Meat compartment

Beverages compartment

Installation accessories: RA428712, RA460000, RA460013, RA460030, RA421712, RA464713, RA423340, RA425110, RA425710

Vegetable compartment

Type of control: Electronic

EAN Barcode: '!2E20AG-cjajaa!

Household refrigerating appliances categories: Refrigerator-freezer

Country of origin: TR

Typology: N

Product name/family: Cooling-freezing-combination

Statistical number: 84181020

MFRNR-code: 0001000024

Business field: A36

EAN14: 14242006290907

Freshness Standard

Activated charcoal air filter: Air fresh filter

Manufacturer: BSH FCLI Cerkezköy

Vario Gaggenau

Hyper fresh premium

HEADER4: 213.4 x 76.2 cm

Remote Diagnostics

Freshness Plus

Chemical tax Sweden: 100% full tax

Series US: Flush

Power input: 220-240V, 50-60Hz

ecoMode

Noise level: Very silent

Supercooling

Product Series Key (technical value): APC

Productdivision: PRF

Chemical tax included

Main product group (MDA, SDA, ACC, OTH): MDA

CPH-Code: A36250801419APCAN2

Product Series Key: SBS, with 0°-zone, Full-NF

HEADER6: RB472305

Construction Type Group: Built in

EU category of the household refrigerating appliance model (2010/30/EC): 7

Main colour of product: Not applicable

Volume packaging (dm3): 1457.700

Voltage Maximum: 240 V

Voltage Minimum: 220 V

The highest star rating: 4

Automatic defrosting: Fridge

Freshness system: Fresh cooling 0 °C

EPREL registration number: 260941

Rest mode

Open-door alarm

Product Compare Family: Cooling

Length inlet hose: 200 cm

Intelligent Inverter Kompressor

Type of indication:

Type of display: TFT display

Total No Frost

Material body: Metal sheets

List of modifyable functions and/or options: Cooling temperature, Freezing temperature

Safety functions: Not applicable

Included user manuals: [AR, AZ, CS, DA, DE, EL, EN, ES, ET, FI, FR, HE, HU, IT, LT, LV, NL, NO, PL, PT, SK, SL, SR, SV, TH, TR]

EU data act type: A

Water pressure: 2 - 8 bar

Possibility of Voice Control: Yes, with optional accessory
