Product group: Side-by-Side appliance

Brand: Gaggenau

Product name / Commercial code: RC472301

Internal article number: RC472301

EAN code: 4242006217549

Product type: one door

Built-in / Free-standing: Built-in

Is this appliance intended to be built-in

Installation typology: Full-integrated

Door panel options: Not possible

Total connected load: 311 W

Fuse protection: 10 A

Nominal voltage: 220-240 V

Frequency: 50 Hz

Number of compressors: 1

Connection: With plug

Total unit gross capacity: 547 l

Total unit net capacity: 479 l

Refrigerator Gross capacity: 547 l

Freezer Gross capacity: 0 l

Star Rating: No

Cellar Gross capacity: 0 l

Number of independent cooling systems: 1

Depth of the product: 608 mm

Depth with open door 90 degree: 1440 mm

Adjustable feet: Yes - all

Height of the packed product: 2270 mm

Width of the packed product: 850 mm

Depth of the packed product: 750 mm

Maximum adjustability feet: 79 mm

Minimum height for installation: 2134 mm

Maximum height for installation: 2134 mm

Minimum width for installation: 762 mm

Maximum width for installation: 762 mm

Depth for installation: 610 mm

Gross weight: 192.3 kg

Energy consumption annual - NEW (2010/30/EC): 182.00 kWh/annum

Refrigerator Net capacity - NEW (2010/30/EC): 479 l

Freezer Net capacity - NEW (2010/30/EC): 0 l

Freezing capacity) - NEW (2010/30/EC): 0 kg/24h

Climate class: SN-T

Minimum ambient temperature: 10 °C

Maximum ambient temperature: 43 °C

Noise level: 40 dB(A) re 1pW

Frost free system: Fridge

QR Code (EU 2017/1369): HTTPS://EPREL.EC.EUROPA.EU/QR/111968

Warning signal / malfunction: No signal

Defrost process fridge section: Automatic

Fast cooling switch

Open-door alarm

Temperature adjustable

Thaw water drainage system

Interior ventilator

Door hinge: Right reversible

Cover door installation system: Fixed-mounted

Freezing drawers (Stck): 0

Number of freezing flaps (Stck): 0

Number of shelves in fridge compartment: 4

Number of Adjustable Shelves in fridge compartment: 3

Material ofthe shelves: Glas

Thermometer fridge section: Digital

Humidifying equipment: false

Included accessories: 1 x egg box with lid

Optional accessories: RA030100

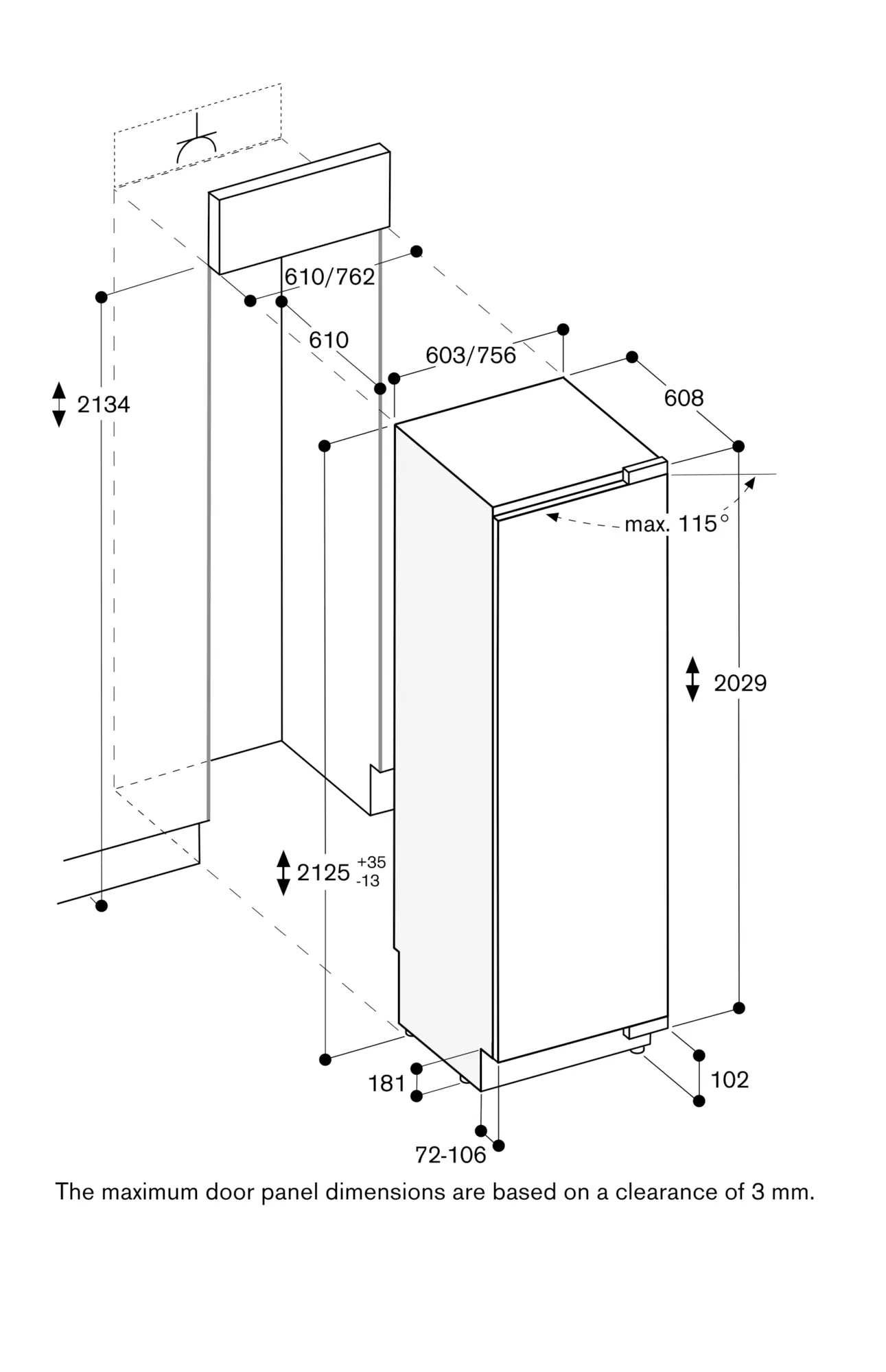

Required niche size for installation (HxWxD): 2134x762x610 mm

Width with opened door (90°): 77.00 cm

Dimensions of the packed product (HxWxD): 2270x850x750 mm

Reversible Door Hinge

Door handle type: no handle

No. of door shelves: 3

No. of temperature zones fridge: 3

Energy efficiency rating China: X

Interior light

Illumination type: LED light

Light

Number of Door Bins - Refrigerator: 3

Door bin adjustability - Refrigerator

Tilt-out door bins in fridge

Gallon Storage

Number of Gallon storage: 1

Temperature Controlled Drawer

Motorized Shelf

Multi-Flow Air Tower

Required cutout/niche size for installation (in): x

Height (in): 83 3/4

Dimensions of the packed product: 89.37 x 33.46 x 29.52

Width of the packed product: 33.46 "

Depth of the packed product: 29.53 "

Height of the packed product: 89.37 "

Net weight: 388.000 lbs

Gross weight: 424.000 lbs

400 series

Energy label version: 2010

Width type US: 30 Inch

Cold appliance: Isobutane

Appliance weight: 175.9 kg

noFrost

Height of the appliance: 2125 mm

Height: 2125 mm

Height of the product: 212.5 cm

Height: 212 cm

Dimensions of the packed product: 227 x 85 x 75 cm

Dimensions (HxWxD): 2125x756x608 mm

Depth of the product: 60.8 cm

Total capacity of 1-star, 2-star, 3-star and 4-star freezer compartments: 0 l

Chemical Tax Classification: 0 %

Width of the appliance: 75.6 cm

Width of the appliance: 756 mm

Width: 76 cm

Depth: 61 cm

Length of connection cable: 300 cm

Supplier address TR19: BSH Ev Aletleri Sanayi ve Ticaret A.Ş. FSM Mah. Balkan Cad. 51, 34771 Ümraniye İstanbul, Türkiye

Fixed hinge

LED light with freezer light

Type of control setting and signalling devices: Button

Energieeffizienzklasse -TSE: F

Cheese compartment

Filter system

Meat compartment

Beverages compartment

Installation accessories: RA421710, RA425110, RA460020, RA460040, RA461714

Vegetable compartment

Universal Product Code: 825225955726

Type of control: Electronic

EAN Barcode: '!2E20AG-cbhfej!

Household refrigerating appliances categories: Refrigerator-chiller and Refrigerator with a 0-star compartment

Country of origin: TR

Necessary installation accessories: RA460000, RA460011

Typology: N

Product name/family: Cooler

Statistical number: 84182110

MFRNR-code: 0001000024

Business field: A36

EAN14: 14242006217546

Productgroup: 1

Activated charcoal air filter: Air fresh filter

Manufacturer: BSH FCLI Cerkezköy

Vario Gaggenau

HEADER4: 213.4 x 76.2 cm

Chemical tax Sweden: 100% full tax

Series US: Flush

Power input: 220-240V, 50Hz

Noise level: Highly silent

Supercooling

Product Series Key (technical value): APC

Productdivision: PRF

Chemical tax included

Main product group (MDA, SDA, ACC, OTH): MDA

CPH-Code: A36250801419APCAN1

Product Series Key: SBS, with 0°-zone, Full-NF

HEADER6: RC472301

Construction Type Group: Built in

EU category of the household refrigerating appliance model (2010/30/EC): 3

Refrigerator Gross capacity Iran: 19.3 Cu Ft

Total unit net capacity Iran: 16.9 Cu Ft

Total unit gross capacity Iran: 19.3 Cu Ft

Main colour of product: Not applicable

Volume packaging (dm3): 1447.125

Voltage Maximum: 240 V

Frequency maximum: 50 Hz

Frequency Minimum: 50 Hz

Voltage Minimum: 220 V

The highest star rating: 0

Automatic defrosting: Fridge

EPREL registration number: 138363

Hinge type: flat hinge

Product Compare Family: Cooling

Intelligent Inverter Kompressor

Type of indication: Not applicable

Type of display: Not applicable

Total No Frost

Material body: Metal sheets

List of modifyable functions and/or options: Cooling temperature

Safety functions: Not applicable

List of warnings: Open door of fridge compartment

Range of temperature (°C): 2-8 °C
