Brand: Gaggenau

Product name / Commercial code: RF411304

Internal article number: RF411304

EAN code: 4242006262150

Product category: Upright freezer

Built-in / Free-standing: Built-in

Is this appliance intended to be built-in

Installation typology: Full-integrated

Product type: one door

Door panel options: Not possible

Total connected load: 300 W

Fuse protection: 10 A

Nominal voltage: 220-240 V

Frequency: 50-60 Hz

Connection: With plug

Star Rating: 4

Total unit gross capacity: 268 l

Total unit gross capacity Iran: 9.5 Cu Ft

Total unit net capacity: 226 l

Total unit net capacity Iran: 8.0 Cu Ft

Width of the appliance: 451 mm

Depth of the product: 608 mm

Depth with open door 90 degree: 1135 mm

Adjustable feet: Yes - all

Height of the packed product: 2270 mm

Width of the packed product: 550 mm

Depth of the packed product: 740 mm

Maximum adjustability feet: 79 mm

Minimum height for installation: 2134 mm

Maximum height for installation: 2134 mm

Minimum width for installation: 457 mm

Maximum width for installation: 457 mm

Depth for installation: 610 mm

Gross weight: 148.3 kg

Energy consumption annual - NEW (2010/30/EC): 253.00 kWh/annum

Freezer Net capacity - NEW (2010/30/EC): 226 l

Frost free system: Fridge and freezer

Freezing capacity) - NEW (2010/30/EC): 16 kg/24h

Storage Period in Event of Power Failure (h): 6 h

Temperature rise time (h): 6 h

Minimum ambient temperature: 10 °C

Maximum ambient temperature: 43 °C

Noise level: 42 dB(A) re 1pW

Frost free system: Fridge and freezer

QR Code (EU 2017/1369): HTTPS://EPREL.EC.EUROPA.EU/QR/380188

Energy Efficiency Class (Regulation (EU) 2017/1369): F

Airborne acoustical noise emissions (EU 2017/1369): 42 dB(A) re 1pW

Airborne acoustical noise emission class (EU 2017/1369): D

Average annual energy consumption in kilowatt hour per year (kWh/a) (EU) 2017/1369: 308 kWh/annum

Sum of volume of frozen compartments (EU 2017/1369): 240 l

Sum of volume of chill- and unfrozen compartments (EU 2017/1369): 0 l

Product outside the scope of "low noise appliance" and "wine storage appliance" (EU 2017/1369)

Climate Class (EU) 2017/1369: Extended temperate, Subtropical, Temperate, tropical

Minimum ambient temperature (EU) 2017/1369: 10 °C

Maximum ambient temperature (EU) 2017/1369: 43 °C

Fast freezing switch

Compartment Volume (4-Star) (EU2017/1369): 240.0 l

Recommended Temperature (4-Star) (EU2017/1369): -18 °C

Freezing Capacity (4-star Compartment) (EU2017/1369): 16.0 kg/24h

Defrosting Type (4-Star) (EU2017/1369): Automatic

Fast freezing function (EU 2017/1369)

Total volume of the product (EU 2017/1369): 240 l

Energy Efficiency Index (EU 2017/1369): 125

4-star

List compartments: 4 star

Energy Efficiency Class for Light Regulation (light source 1) (EU) 2019/1805): F

Lighting technology used (light source 1) (EU 2019/1805): LED

Defrost: Automatic

Temperature adjustable

Door hinge: Left reversible

Cover door installation system: Fixed-mounted

Number of drawers/baskets (Stck): 2

Number of freezing flaps (Stck): 0

Light

Interior light

Illumination type: LED light

Included accessories: 1 x ice cube scoop, 1 x connection set, 1 x Ice storage container, large

Optional accessories: RA448220, RA450012

Reversible Door Hinge

Multi-Flow Air Tower

Door bin adjustability - Freezer

Number of compressors: 1

Number of independent cooling systems: 1

Depth: 61 cm

Required cutout/niche size for installation (in): x

Net weight: 298.000 lbs

Gross weight: 327.000 lbs

Width: 45 cm

Dimensions of the packed product: 89.37 x 21.65 x 29.13

Width of the packed product: 21.65 "

Depth of the packed product: 29.13 "

Height of the packed product: 89.37 "

Height: 212 cm

Number of Door Bins - Freezer: 4

Economy setting

Shelf Adjustability - Freezer

Placement of Temperature Control: Interior

Communication technology: wifi

Remote access

Remote update

Capability of wireless communication: Yes, embedded

400 series

Energy label version: 2017

Hinge type: soft close flat hinge

Width type US: 18 Inch

Interior ventilator

Cold appliance: Isobutane

Connectivity type: Wi-Fi

Selected digital services (Gaggenau Home Connect): Remote diagnostics, Remote Monitoring and Control

Appliance weight: 135.2 kg

noFrost

Gaggenau Home Connect

Basic touch control

Height of the product: 212 cm

Door Open Assist

Height of the appliance: 2125 mm

Height of the product: 212.5 cm

Capacity freezing in 12 h (IEC): 8.5 kg

Dimensions of the packed product: 227 x 55 x 74 cm

Dimensions (HxWxD): 2125x451x608 mm

Total unit capacity (IEC): 240 l

Depth of the product: 60.8 cm

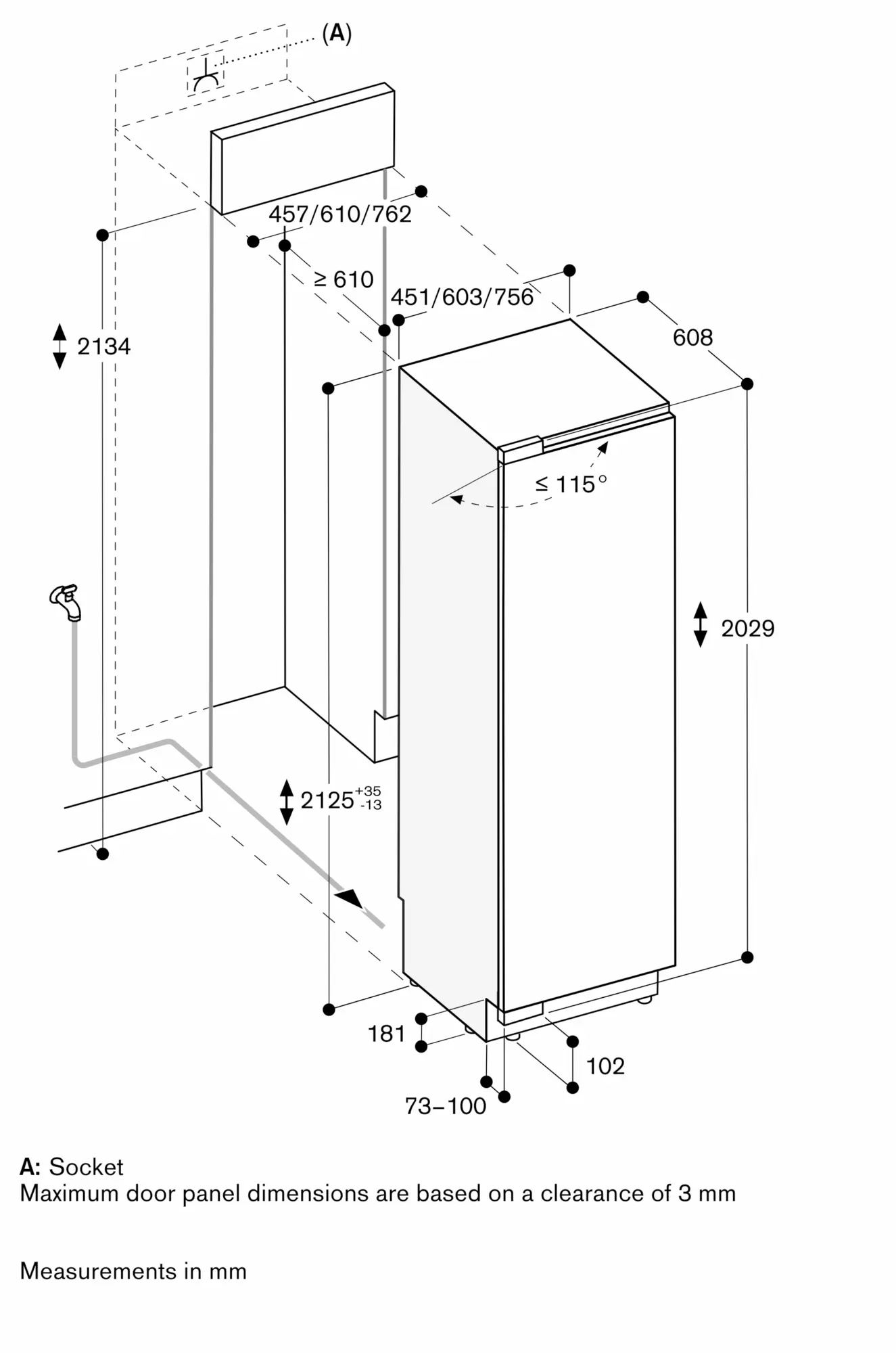

Required niche size for installation (HxWxD): 2134.0 x 457.0 x 610.0 mm

Energy consumption in 24 h (IEC): 0.760 kWh/d

Total capacity of 1-star, 2-star, 3-star and 4-star freezer compartments: 240 l

Chemical Tax Classification: 0 %

Width of the appliance: 45.1 cm

Length of connection cable: 300 cm

Climate class: SN-T

Width with opened door (90°): 46.50 cm

Capacity 4 stars compartment (IEC): 240 l

Ice cube maker: Automatic ice cube maker

Ice and water dispenser

Supplier address TR19: BSH Ev Aletleri Sanayi ve Ticaret A.Ş. FSM Mah. Balkan Cad. 51, 34771 Ümraniye İstanbul, Türkiye

Fixed hinge

superFreezing

Cushioned door closing system

Type of control setting and signalling devices: Button, Via app

Installation accessories: RA428110, RA460013, RA460020, RA464113, RA421110, RA423140, RA425110

Type of control: Electronic

Door handle type: no handle

Energy efficiency rating China: X

EAN Barcode: '!2E20AG-cgcbfa!

Household refrigerating appliances categories: Upright freezer

Country of origin: TR

Typology: N

Product name/family: Freezer

Statistical number: 84184020

MFRNR-code: 0001000024

Business field: A36

Temperature adjustable freezer

EAN14: 14242006262157

Manufacturer: BSH FCLI Cerkezköy

Vario Gaggenau

varioZone

HEADER4: 213.4 x 45.7 cm

Remote Diagnostics

Chemical tax Sweden: 100% full tax

Power input: 220-240V, 50-60Hz

ecoMode

Noise level: Very silent

Product Series Key (technical value): ANC

Productdivision: PRF

Chemical tax included

Main product group (MDA, SDA, ACC, OTH): MDA

Dimensions of the packed product (HxWxD): 2270x550x740 mm

CPH-Code: A36250801413ANCAN2

Product Series Key: SBS, Full-NF

HEADER6: RF411304

Construction Type Group: Built in

No. of external doors: 1

EU category of the household refrigerating appliance model (2010/30/EC): 8

Refrigerator Gross capacity Iran: 0.0 Cu Ft

Freezer Gross capacity Iran: 9.5 Cu Ft

Number of shelves in freezer: 4

Main colour of product: Not applicable

Volume packaging (dm3): 923.890

Product group: Freezers

Voltage Maximum: 240 V

Voltage Minimum: 220 V

The highest star rating: 4

Automatic defrosting: Fridge

EPREL registration number: 380188

Rest mode

Product Compare Family: Freezer

Intelligent Inverter Kompressor

Type of indication:

Type of display: TFT display

Material body: Metal sheets

Automatic motor-driven ice-maker

List of modifyable functions and/or options: Freezing temperature

Safety functions: Not applicable

Included user manuals: [AR, DA, DE, EL, EN, ES, FI, FR, HE, IT, MS, NL, NO, PL, PT, RU, SV, TR, ZF, ZH]

EU data act type: A

Water pressure: 2.4 - 8.3 bar

Possibility of Voice Control: Yes, with optional accessory
